How to: Manage VxRail Clusters

The main component of VxRail HCI system software is VxRail Manager which is primary element for managing the VxRail components.

The user interface of VxRail has been integrated into the vSphere Client since VxRail version 4.7. The original VxRail Manager GUI is no longer available sepearately. The VxRail Manager remains a part of every VxRail configuration, though it no longer provides direct access to the web UI. Rather, the vSphere Client integration is now the sole way to interact and manage a VxRail configuration.


Let's go step by step:

This is vCenter home page and you can see the VxRail Plug-in is already installed.


and can be viewed via "Menu" button.




Click on "VxRail" to get Dashboard



Dasboard page will give you access to view

  1. Whenever new host to be added to VxRail Cluster

  2. System Health

  3. Connect with support teams through chat, open a request and even download additional software, add-on and updates for VxRail Appliance

  4. Configurable section to add to VxRail Community and Knowledge base


A walk-through with VxRail Clusters


The VxRail Cluster is set up while bring-up process for the nodes and the ESXi nodes are added. VxRail cluster is nothing but the cluster of vSAN enabled ESXi hosts. The Management of these hosts will be done by VxRail Manager.


Where to find : (Names can vary according to the set up)

> vCenter home> Menu > Hosts and Clusters > VxRail-Datacenter > VxRail-Virtual-VSAN- Clustrer


Breif about Summary of the cluster:

On the summary page of VxRail VSAN Cluster, you can check below sections by clicking drop down on each section




  1. Related Objects : Data Centers

  2. Cluster Consumers:

  3. Resource Pools

  4. vApps

  5. Total Virtual Machines > How many are powered on and off

  6. Custom Attributes

  7. VxRail IP address

  8. VxRail thumbprint

  9. VxRail Version

  10. VSAN overview : Gives information about VSAN capacity, VSAN health, VSAN performance

  11. vSphere DRS

  12. Tags

  13. Cluster Resources : Number of Hosts with EVC mode information

  14. Update Manager

  15. Host Baseline compliance information

  16. Host Firmware

  17. Pre-check Remidiation state

How to Monitor the Hosts(Nodes) on VxRail

This section will provide the information about the existing appliances (ESXi nodes). Each node will have appliance ID associated


Where to find :

> Monitor > VxRail > Appliances

The basic information about cluster components will include:

  1. Cluster ID

  2. Last Time Stamp

  3. Number of Chassis : total number of hosts whether added to cluster or not

  4. Connected status

  5. Health State

  6. Operational state

You can scroll with the mouse over the nodes, it will be visible as highlighted


and when you click on the host, it will provide further basic information about the host


Also, provides basic operation related to the host management like

  1. host details

  2. shutdown

  3. add disk

  4. remove host from cluster.



How to add new host to the VxRail cluster

The VxRail cluster is not a generic cluster and there is a way to add the new node (ESXi). Lets go through how.


To view the existing hosts, select the VxRail Cluster

> Configure > VxRail > Hosts


To check how many total hosts are available in the chassis

> Monitor > VxRail > Appliances > Number of Chassis


To check how many host (s) is available to add to the cluster

> vcenter home > Menu > VxRail > VxRail Dashboard

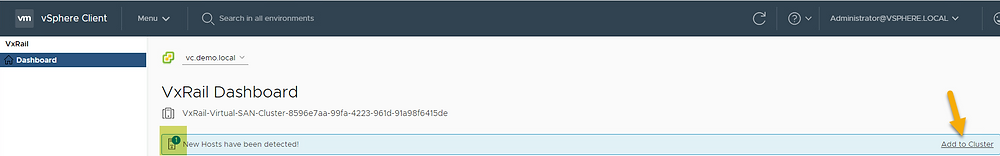

New Hosts have been detected (In this example, one host)



When you click on "Add to Cluster" , it will take you to

> VxRail cluster > Configure > VxRail > Add VxRail Hosts



The node is available to be added into the VxRail cluster. Click on "Add host" to add new node and it will take you to the available nodes in the chassis. Select the check box you want to add and hit next

Fill up all the details like

  1. username : administrator@vsphere.local

  2. password : <vCenter login password>

  3. Host IP address : fill up according to your environment

  4. ESXi Credentials : fill up the root and password you want to set with management account

  5. Verify the entries and click Validate


Once validation is completed, click finish to add the host on to the VxRail cluster




hence the host is added to the existing VxRail cluster.





PS: Hope this artcile is informative to you. Happy reading
